Name: MCR3516 PC/SC CCID Smart Card Reader Support ISO7816 ID-1 SIM CARD Micro SIM Nano SIM
Brand: MARKLAND TECHNOLOGY LIMITED
Availability: InStock

Home Products Contact

MCR3516 PC/SC CCID Smart Card Reader Support ISO7816 ID-1 SIM CARD Micro SIM Nano SIM

Product Details:

Contact Now

Detailed Product Description

Type:	Other Type	Interface:	Usb
Host Interface::	USB 2.0 CCID (USB 1.1/3.0 Compliant)	USB Connector::	USB Type A
Contact Card Supported Standard::	ISO7816 Part 1 To 4	Contact Card Interface Speed::	Up To 600 Kbps (depending On Card)
Card Size::	ID-1,SIM Size,Micro SIM Size,Nano SIM Size	Driver::	PC/SC
Support Systems::	Win2000+/Linux/MacOS/Android	OEM&ODM::	YES
SDK::	Free	Plug And Play::	YES

Product Description

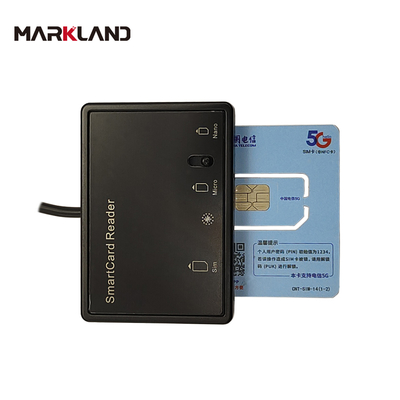

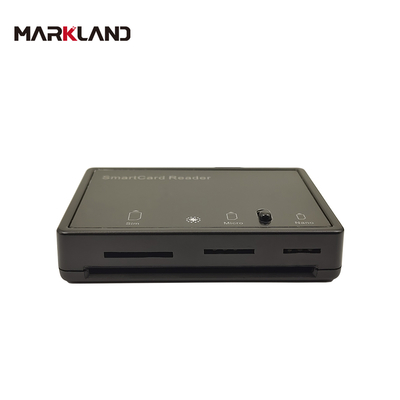

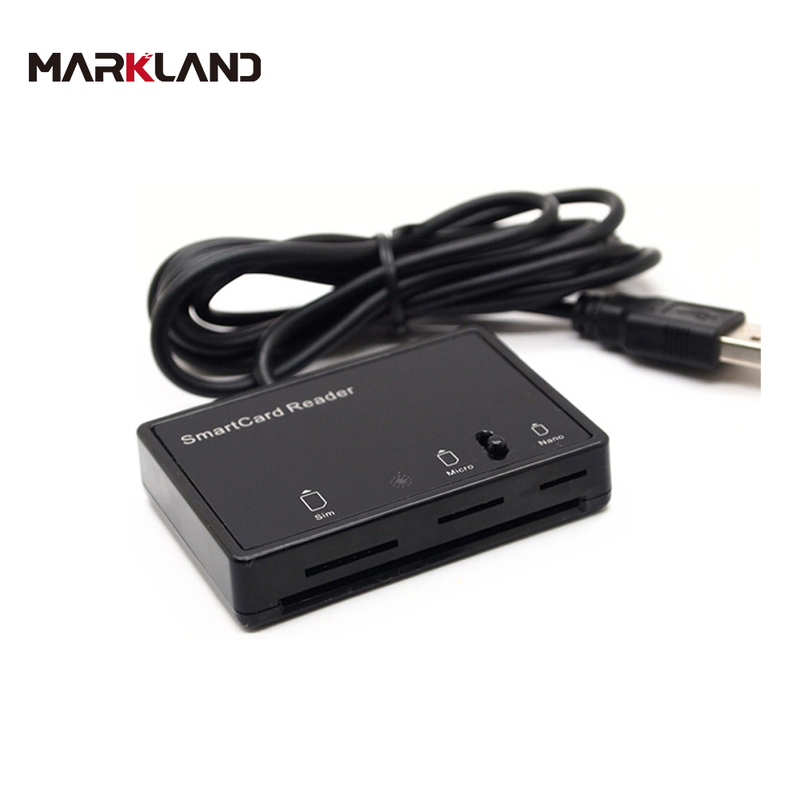

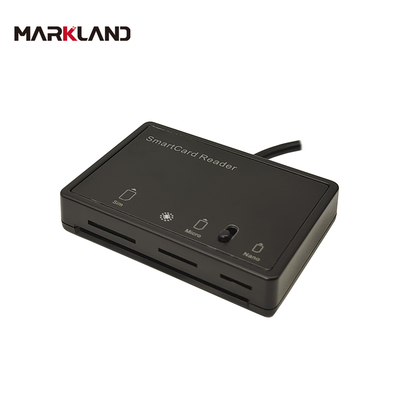

MCR3516 Multifunction Smart Card Reader

MCR3516 is a SIM card reader widely used by Chinese telecom operators (China Mobile, China Unicom, China Telecom). Its convenience greatly improves work efficiency; and the reader is widely used in taxation, online Banking, electronic signatures, email encryption, membership cards, digital TV, electronic gift certificates and games and other high-security fields;

Interface:

- Full speed USB (12Mbps) / USB 3.0 compatible - Bus powered - CCID-compliant

Chip Card Interface:

Supported standards - ISO / IEC 7816 part 1 to 4 - Support of the protocols T = 0, T = 1 - Memory card support through SCM MCARD API - Compatible with all currently used chip cards and relevant industry standards - Support for ISO 7816 Class A, B, C cards (5V, 3.3V, 1.8V) Interface speed - Up to 600 kBit / s (depending on the card) - TA1 = 97 Smartcard recognition - "Card present" switch - Automatic power on / off - Short circuit protection

Contact Unit:

- 8 contacts - ISO arrangement - 100,000 mating cycles - sliding contacts

Card Size:

ID-1，SIM CARD，Micro SIM，Nano SIM

Physical Parameter & Work Environment:

Display: Red status LED Cable / power supply: Cable: 1.5 m with USB type A connector, power supply via USB bus Dimensions: LWH 68 x 47 x 13mm Weight: 78 g Temperature range: 0 ° C to + 50 ° C

Operating Systems:

PC/SC Specification Ver. 2.01.14 for: • Windows® 7/8/10 (32 and 64 bit) • Windows® Server 2008/2012/2016 • Windows® CE 6.0, 7.0 • MacOS 10.9.x - 10.15.x • Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit) • Android 4.0 and higher

Software:

- PC / SC API - CT-API (through wrapper on top of PC / SC) - Synchronous-API (through wrapper on top of PC / SC) - M-Card API (through wrapper on top of PC / SC)

PC/SC Drivers:

Use Identiv's SCR33XX driver； Software and functionality compatible with Identiv´s Contact Smart Card Reader
