Name: M ID-BOX for ICAO 9303 ID-1 Document Support Customization OEM ODM Vietnam ID Card Reader Check CCCD
Brand: MARKLAND TECHNOLOGY LIMITED
Availability: InStock

Home Products ID Card Scanner

M ID-BOX for ICAO 9303 ID-1 Document Support Customization OEM ODM Vietnam ID Card Reader Check CCCD

Product Details:

Place of Origin:	China

Contact Now

Detailed Product Description

Operation System:	ANDROID 10, Android 11, Windows 10, Android 9.0, Windows 7	Reading Distance:	0-3m
Frequency:	13.56Mhz	Protocol:	ISO 14443A/B
Material:	ABS	Support Card:	MIFARE, Smart Cards
Host Interface:	USB 2.0 CCID (USB 1.1/3.0 Compliant)	Power Supply:	Bus-powered USB
Dimensions(LWH):	181 * 106 * 99 Mm (With Camera)	Supported Font:	OCR-B
MRZ/OCR Reading:	ICAO 9303 Specification Parts 1-4	Contact Smart Card Reading:	ISO/IEC 7816 Part 1 To 4
Contactless/RFID/NFC Reading:	ISO/IEC 14443, ISO/IEC 18092	Supported Card Size:	ID-1
Support:	Fingerprint Collection	Camera:	Real-time Photo Or Video Recording

Product Description

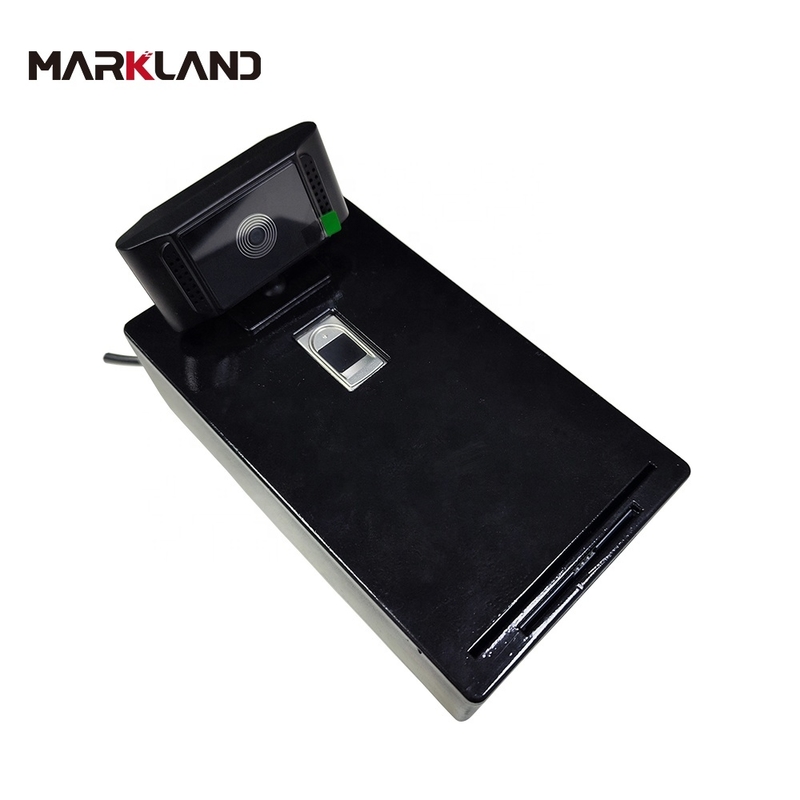

M ID-BOX ID Card Reader

Supports MRZ+Contact+Contactless/NFC/RFID+Camera+Fingerprint, Integrate these five functions into one device.

M ID-BOX ID card reader is a multi-function document reader for ID-1 identity document check, It provides a perfect solution for ICAO9303 standard documents of ID-1 size, such as eID, Resident Permit, Driving Licence, visa and other documents, which make it can be applied to variety of industries. It scans the MRZ on the card, and then extracts and prints digital data from the contactless NFC chip through the RFID function, including name, data of birth, gender, document number, date of expiry, the holder's image etc. In addition, M ID-BOX also integrates a fingerprint scanner and a camera, which can collect fingerprints and photos of holders on the spot in real time, which provides an ideal device choice for multi-factor identification. M ID-BOX ID card readers are both portable and desktop devices 'equipped' with a Software Development Kit, so that they can be integrated into computer systems - whether existing or planned. The industrial standard interfaces of our devices can be integrated into any IT system, the most importantly is that we can provide the customized service as per the clients requirement.

Read chip information from Documents in the following formats:

1. Printed with MRZ 2. Have contactless/NFC chip

Supported Documents

Reference Example

Keywords:

• Innovative and convenient multi-function authentication equipment • Read MRZ from ICAO 9303 compliant documents of ID-1 size (National IDs, Resident Permits, etc) • Single Action - MRZ & RFID chip reading are carried out simultaneously • One ISO 7816–compliant Contact Smart Card Reader • Support ISO 14443 Type A & B contactless ICs at 13.56MHz using a PC/SC interface • Support high-quality fingerprint collection and verification • Support high-definition real-time photography and video recording • Support customized shell, color, model, packaging, etc

Product Range:

Model/Function	M ID-BOX-1	M ID-BOX
MRZ Scanner	√	√
Contact Smart Card Reader	√	√
Contactless/RFID/NFC Reader	√	√
Fingerprint Scanner	√	√
Camera	XX	√

Available Model Number:

M ID-BOX (MRZ+Contact+Contactless/RFID+Camera+Fingerprint) M ID-BOX-1 (MRZ+Contact+Contactless/RFID+Camera)

Specifications:

Multi-purpose ID Card Reader			M ID-BOX
Parameter			Details
MRZ reading
Supported Font:			OCR-B
Supported Stardards:			• ICAO 9303 specification Parts 1-4; • ISO 18013 Driving Licence
Supported Documents:			• 3 lines MRZ - ID1: eID, Resident Permit... • 2 lines MRZ - ID3: Passport, Visa... - ID2: ID Card... • 1 line MRZ - ID1: Driving Licence...
Card Size			ID-1 card
Contact Smart Card reading
Supported Standards:			ISO/IEC 7816 Part 1 to 4; T=0, T=1
Supported Card Types:			5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Card Size:			ID-1
Smart Card Interface Speed:			• Up to 600 kbps (depending on card) • TA1=97
Communication:			Compliant with CCID and PC/SC standards
Contactless/RFID/NFC reading
Supported Standards:			ISO/IEC 14443, ISO/IEC 18092
Supported Card ICs:			MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family, MIFARE DESFire Family, FeliCa™, NFC Forum Tag Types 1/2/3/4
Data Transfer Rate:			106/212/424/848 kbits/s, depending on card IC
Communication:			Compliant with CCID and PC/SC standards
Fingerprint Sensor
Image Resolution			508 DPI
Image Size			192 * 192 pixels
Effective Sensing Area			9.6 * 9.6 mm
Sensor type			Capacitive
Camera
Pixels			5 Mega
Max. Resolution			2592*1944
Image Sensor			CMOS
General
Host Interface :			USB 2.0 CCID (USB 1.1/3.0 compliant)
Power Supply:			Bus-powered USB
Connector:			1.5m USB cable with USB A connector
Dimensions(LWH):			181 * 106 * 99 mm (With Camera)
Weight:			300 g ± 5%
Status Indicator:			LEDs
Body:			Black, ABS
Temperature:			• In operation: 0°C to 50°C • Storage: -25°C to 85°C
Humidity:			0-95% non-condensing
Host operating systems:			Windows, Linux, Android

Company Profile

MARKLAND was founded with its headquarters established in Hong Kong.

Main Business:The company specializes in:

• e-Passport reader and scanner

• ID card identification devices

• Smart card read/write devices

• RFID/NFC applications

• Physical security devices • Biometric devices • Biometric Registration Kits

Experience:

The core team has over 20 years of experience in the industry.

Strategy:

Hong Kong is utilized as a strategic hub to integrate global scientific and technological advancements, innovative application concepts, and localized optimizations.

Goal:

Aims to provide international products and services that incorporate the latest global innovations.

Innovation and Development:

• Independent research and development capabilities. • Holds 1 invention patent, 25 utility model patents, and 11 software copyrights.

Applications:

Involved in sectors like e-Government, e-Police, e-Tax, passenger transportation,identification management, information security, Elections, national ID card registration/verification, card issuance, census, refugee registration, KYC, IOT etc.
