Name: MEPR10-OCR Half-Page MRZ Reader for Passport and ID Card
Brand: MARKLAND TECHNOLOGY LIMITED
Availability: InStock

Home Products ID Card Scanner

MEPR10-OCR Half-Page MRZ Reader for Passport and ID Card

Product Details:

Place of Origin:	China
Brand Name:	MarkLand

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	MRZ Scanner	Scan Element Type:	OCR
Interface Type:	Usb	Max Paper Size:	Passport Size
Scan Speed:	1-2s	Warranty(year):	1-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (sdk):	Yes
Color:	Black	Host Interface:	USB 2.0 CCID (USB 1.1/3.0 Compliant)
Power Supply:	Bus-powered USB	Connector:	1.5m USB Cable With USB Type C Connector
Dimensions(LWH):	176.5140.628.8 Mm	Supported Font:	OCR-B
MRZ/OCR Reading:	ICAO 9303 Specification Parts 1-4	Contact Smart Card Reading:	ISO/IEC 7816 Part 1 To 4
Supported Documents:	Passport,Visa,eID,Resident Permit,Driving Licence,ID Card...

Product Description

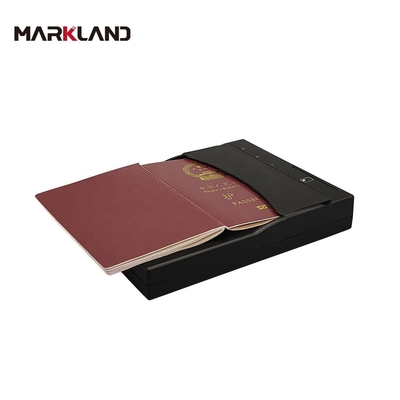

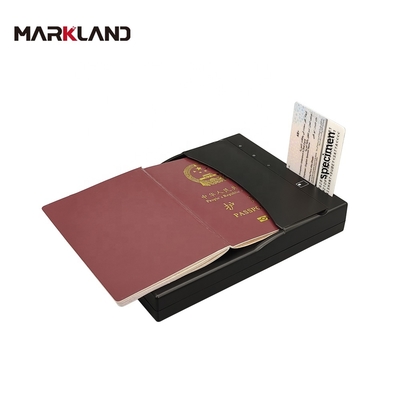

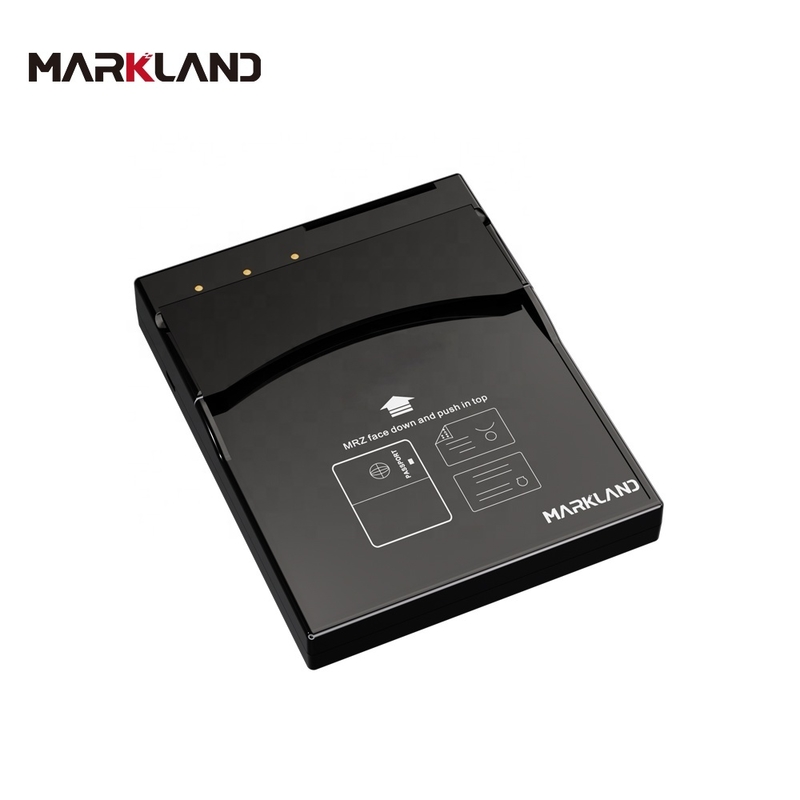

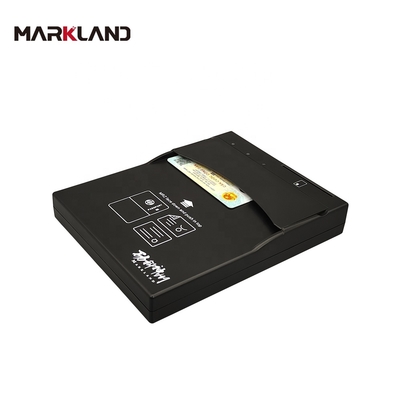

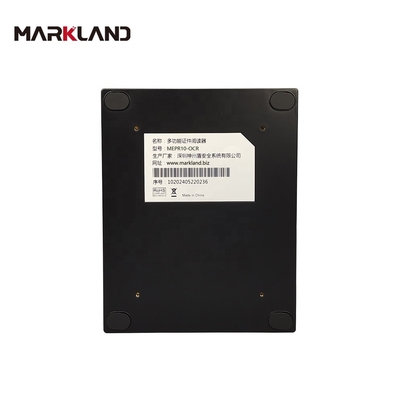

MEPR10-OCR Half-Page MRZ Passport and ID Card Reader

The MEPR10 series is a machine readable zone (MRZ) data reader with RFID functionality to simultaneously decode the contents of an e-Passport or contactless smart card. In addition, MEPR10 series also has one built-in contact smart card reader, which supports reading ISO7816 protocol contact smart card. The MEPR10 series automatically detects when a document with machine readable data has been inserted, and its advanced recognition engine provides highly accurate and instant data capture and decoding.

Supported Documents

Features:

The compact, robust design enables easy integration into kiosk, automat, vending machine and gates etc, or use as a desktop device. MEPR10 series can read all e-passports and ICAO9303-compliant identity documents, such as national ID cards, driving licenses, residence permits, etc...

Benefits:

MEPR10 series half-page multifunctional e-passport reader, by integrating a contactless/RFID reader, the device simultaneously and efficiently capture and process data fields from the chip, including the image of the holder. This combined capability provides a powerful and cost-effective alternative to full-page, multi-illumination passport readers.

Markets:

Any place where complete datapage scan is not needed and ease of use is required: Police identification, Airport check-in, Self service terminals, Border control, Hotels, Banks, Car rental companies, ...

Customers:

Public and private companies requiring automatic identity verification. Integrators or third parties in need of adding ID document reading functions onto kiosks, terminals, etc.

MEPR10-OCR Half Page Passport & Document Reader

Product Range:

Model/Function	MEPR10-OCR	MEPR10
MRZ/OCR Scanner	√	√
Contact Smart Card Reader	√	√
Contactless/RFID/NFC Reader	optional	√

Specifications:

Multi-purpose Passport Reader			MEPR10-OCR
Parameter			Details
MRZ/OCR reading
Supported Font:			OCR-B
Supported Stardards:			• ICAO 9303 specification Parts 1-4; • ISO 18013 Driving Licence
Supported Documents:			• 3 lines MRZ - ID1: eID, Resident Permit... • 2 lines MRZ - ID3: Passport, Visa... - ID2: ID Card... • 1 line MRZ - ID1: Driving Licence...
Contact Smart Card reading
Supported Standards:			ISO/IEC 7816 Part 1 to 4; T=0, T=1
Supported Card Types:			5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Card Size:			ID-1
Smart Card Interface Speed:			• Up to 600 kbps (depending on card) • TA1=97
Communication:			Compliant with CCID and PC/SC standards
*Contactless/RFID/NFC reading(Optional)*
Supported Standards:			ISO/IEC 14443, ISO/IEC 18092
Supported Card ICs:			MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family, MIFARE DESFire Family, FeliCa™, NFC Forum Tag Types 1/2/3/4
Data Transfer Rate:			106/212/424/848 kbits/s, depending on card IC
Communication:			Compliant with CCID and PC/SC standards
General
Host Interface :			USB 2.0 CCID (USB 1.1/3.0 compliant)
Communication:			12 Mbps (USB 2.0 full speed)
Power Supply:			Bus-powered USB
Connector:			1.5m USB cable with USB type C connector
Dimensions(LWH):			176.5140.628.8 mm
Weight:			260g
Status Indicator:			3 LEDs
Body:			Black, ABS
Temperature:			• In operation: 0°C to 50°C • Storage: -40°C to 80°C
Humidity:			0-95% non-condensing
Host operating systems:			Windows, Linux, Android

Full-page Passport Reader and Half-page Passport Reader
