Name: MCR523-M 13.56mhz ISO14443 NFC Contactless Smart Card Reader Embedded Module SCM3712
Brand: MARKLAND TECHNOLOGY LIMITED
Availability: InStock

Home Products Module

MCR523-M 13.56mhz ISO14443 NFC Contactless Smart Card Reader Embedded Module SCM3712

Product Details:

Place of Origin:	China

Contact Now

Detailed Product Description

Operation System:	Linux, ANDROID 10, Android 11, Windows 10, Android 9.0, Windows 7	Reading Distance:	0-3m
Frequency:	13.56Mhz	Protocol:	ISO14443
Material:	ABS	Support Card:	MIFARE
Host Interface::	USB 2.0 CCID (USB 1.1/3.0 Compliant)	USB Connector::	Optional
Contactless Transfer Rate::	106, 212, 424, Or 848 Kpbs, Depending On Card IC	Card Size::	ID-1 (full-size)
Driver::	PC/SC	Support OEM&ODM::	YES
Free SDK::	YES

Product Description

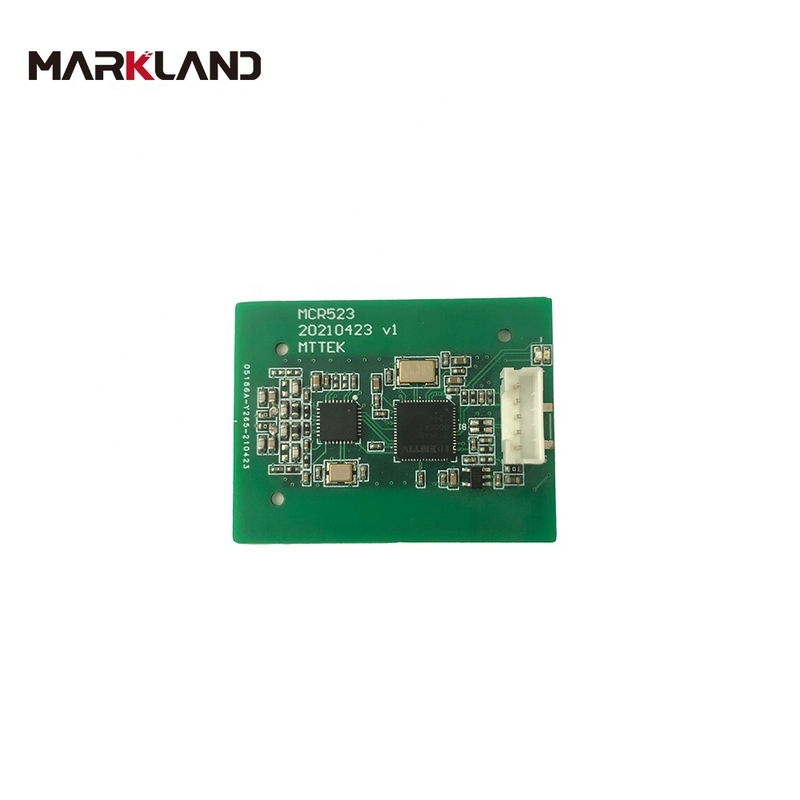

MCR523-M Contactless Smart Card Reader Module

• COMPACT

Size optimized for space constraint equipment

• COMPLIANT

ISO 14443 A/B, FeliCa, NFC Reader/Writer Mode and Peer-To-Peer mode. Full feature support of various contactless tags and NFC devices

• FAST

Optimized transaction times for highest throughput

• SIMPLE INTEGRATION

PC/SC standards-compliant driver for Windows®, Linux, Android and MAC

MCR523-M is a small NFC reader module developed based on 13.56 MHz contactless technology, for fast and easy integration to embedded systems.Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only Mifare® and ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.

MCR523-M is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 848 kbps and a full USB speed of up to 12 Mbps, this product can also read and write more quickly and efficiently. The proximity operating distance of MCR523-M is up to 5 cm, depending on the type of contactless tag in use.

With MCR523‐M, the end user experiences convenience, transaction‐time efficiency, security, flexibility and full NFC capability for applications such as network log‐on, secure web‐based transactions and even NFC‐based customer loyalty programs. The product also has been designed for secure in‐field firmware upgrades and great reliability, providing a perfect return on investment.

Specification

PARAMETER			MCR523-M Contactless Smart Card Reader Module
Host Interface			USB 2.0 full speed (12 Mbps)
Supported Standards			ISO 14443 Part 1 to 4
Supported Card Chips			• Lascom cards • MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k), FeliCa™, Calypso, CD21 • NFC Forum Tag types 1/2/3/4
Data Transfer Rate			106, 212, 424, or 848kpbs, depending on card IC
Antenna			Integrated
Driver and Software
PC/SC Driver			PC/SC Specification Ver. 2.01.14 for: • Windows® 7/8/ 8.1/10 (32 and 64 Bit) • Windows® Server 2003/2008/2012 • MacOS 10.10.x,10.11.x, 10.12.x • Linux 2.6.x (32 and 64bit) • Android 4.0 and higher
Software			• PC/SC API • CT-API (through wrapper on top of PC/SC) • M-Card API (through wrapper on top of PC/SC)
Operating Conditions
Power Supply			Bus-powered USB
Power Consumption			50mA, excluding card
Dimensions			43 x 33 x 8 mm
Weight			8g ± 5%
Operating Temperature Range			0° to 50° C (32° to 122° F)
Storage Temperature Range			-25 to 85°C (-4 to 140°F)
Operating Humidity Range			Up to 95% RH non-condensing
Connector			1.5 m USB cable with USB type A connector
Status Indicator			LED
Firmware			SmartOS™
Firmware In-Field Upgradeable			Yes

The MCR523-M is functionally compatible with the uTrust3700F.

MCR523-M is compatible with NXP's TagXplorer.
