Name: MEPR100+ Full Page Passport Reader Passport Scanner Document Reader OCR/MRZ and RFID With White Light Infra-red and UV
Brand: MARKLAND TECHNOLOGY LIMITED
Availability: InStock

Home Products OCR & RFID

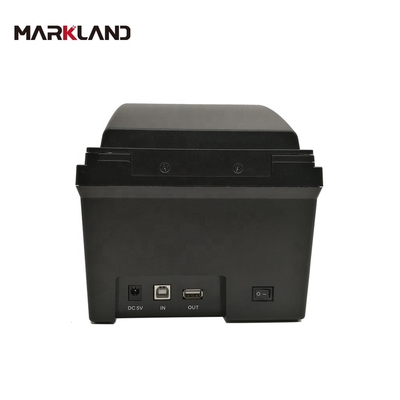

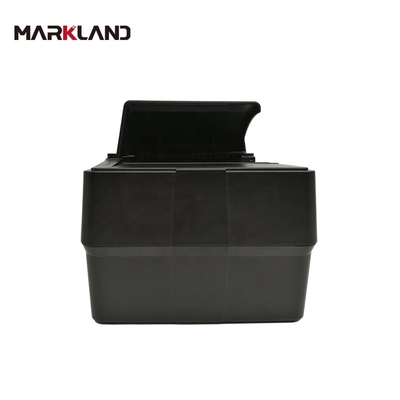

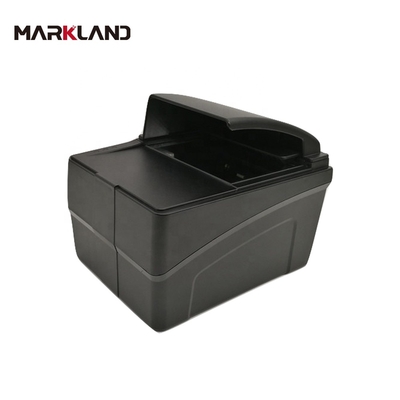

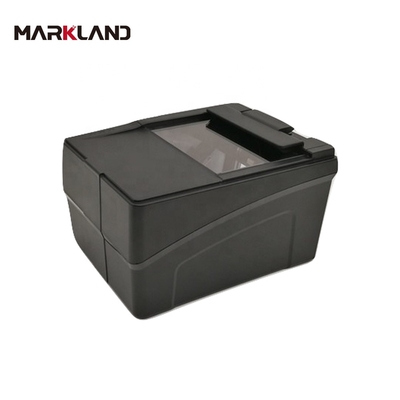

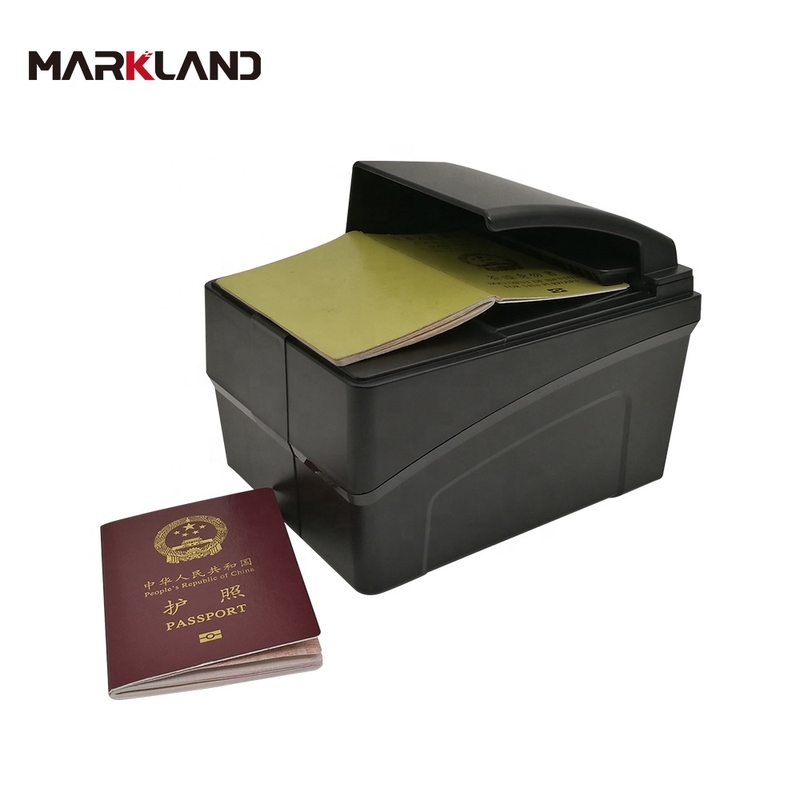

MEPR100+ Full Page Passport Reader Passport Scanner Document Reader OCR/MRZ and RFID With White Light Infra-red and UV

Product Details:

Place of Origin:	China

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Document Scanner	Scan Element Type:	CMOS
Colour Depth:	24 Bit	Interface Type:	Usb
Max Paper Size:	Passport Size	Optical Resolution:	400dpi
Warranty(year):	1-Year	After-sales Service:	Repair, Call Center And On-line Technical Support
Software Development Kit (sdk):	Yes	Color:	OCR&RFID

Product Description

MEPR series Full-Page Passport Reader

MEPR series multi-purpose passport reader is a compact,full page passport reader in a stylish housing. It provides perfect solutions for scanning passport, e-passport, visa and other documents, which make it can be applied to variety of industries. Printed data is extracted from the entire data page, from MRZ & OCR, while digital data from contactless RFID chip, including name, data of birth, gender, document number, date of expiry, the holder's image etc.

Our passport readers are both portable and desktop devices 'equipped' with a Software Development Kit, so that they can be integrated into computer systems - whether existing or planned. The industrial standard interfaces of our devices can be integrated into any IT system, the most importantly is that we can provide the customized service as per the clients requirement.

Supported Documents

OCR(MRZ):

ICAO 9303 standard compliant documents:
> ID-1 (Identity Card)
> ID-2 (Passport,Visa)
> ID-3 (Passport)

RFID:

> Read contactless ICs(13.56MHz) according to ISO/IEC 14443-S(TypeA/B/C)
> Support e-passport Basic Access Control (BAC) & Extended Access Control
> Support active/passive authentication

The key features of the product are:

> Automatic data entry
> Very high accuracy OCR
> Single-line reading
> Multiple-line reading
> ICAO compliancy
> MRZ reading
> RFID Reading
> Full page processing

> Multi illumination sources (visible/IR/UV)
> Heavy-duty design
> Reliability
> Stable operation
> Opened interfaces
> Free SDK (Software Development Kit)
> Application programming interface (API)

Multi illumination sources:

MEPR series multi-purpose passport reader takes high resolution (3.1Mpixels) pictures of different types of personal documents (passport, identity card, etc.) using three important illuminations: White light, Infra-red and UVA. And can take photos and save.

Sample Test

Norway sample passport test：

White light

Infra-red

UV

Application:

This includes applications that are primarily focused on data capture opportunities in hotels, casinos, liquor stores, bars, bank, airport, customs, embassy, government, and rental car companies.

MEPR100+ Full Page Passport & Document Reader :

Specifications:

Multi-purpose Passport Reader			MEPR100+
Product Features:
RFID			YES
OCR(MRZ)			YES
Anti-counterfeiting function:
Optical security			YES
RFID security			YES
Performance Parameter:
Reading speed(S)
OCR reading time			< 2s
ICs Data captured time			Depends on the amount of data stored in the chip
Reading correct rate(100%):
OCR reading correct rate			> 98%
ICs reading accuracy rate			100%
Multi illumination sources:
White light			YES
Infra-red			YES
UV			YES
Window size			125*92 mm
Status Indicators：
Red			Read Error LED
Blue			Ready LED
Green			Reading LED
Resolution:
Sensor			3.1 Megapixels (2048*1536), CMOS, RGB 24 bit
DPI			400
Physical Characteristics:
Dimensions (LWH) (Without shading plate)			209169126
Net Weight			＜ 1.2 KG (2.2lbs)
Power:
Voltage			External 5VDC 2A Input voltage 100 - 240VAC, Frequency 50 - 60Hz
Energy consumption			＜ 20W
Other
Free SDK			C++ C# OCX Java Android
Support Systems			Windows&Android
Service & Maintenance			One-year warranty

Passport Reading Guide：

OCR only

OCR & RFID

Identification by Chip-operation：
1.Please face down the MRZ page of your ID card, close to the AB side；
2.Please have the photo page of your passport face down, close to both sides of A&B;
