Name: i-Ark M06 Portable Biometric Enrollment Kit for elections, national ID card registration, census, immigration management
Brand: MARKLAND TECHNOLOGY LIMITED
Availability: InStock

Home Products Workstation

i-Ark M06 Portable Biometric Enrollment Kit for elections, national ID card registration, census, immigration management

Product Details:

Place of Origin:	China

Contact Now

Detailed Product Description

Warranty(year):	1	After-sales Service:	Call Center And On-line Technical Support

Product Description

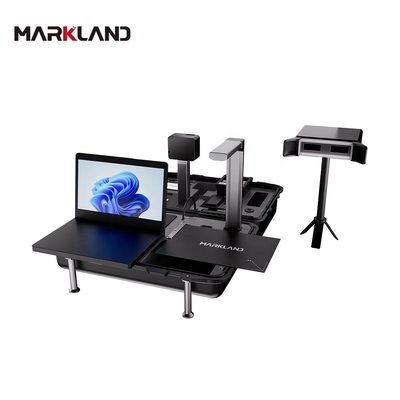

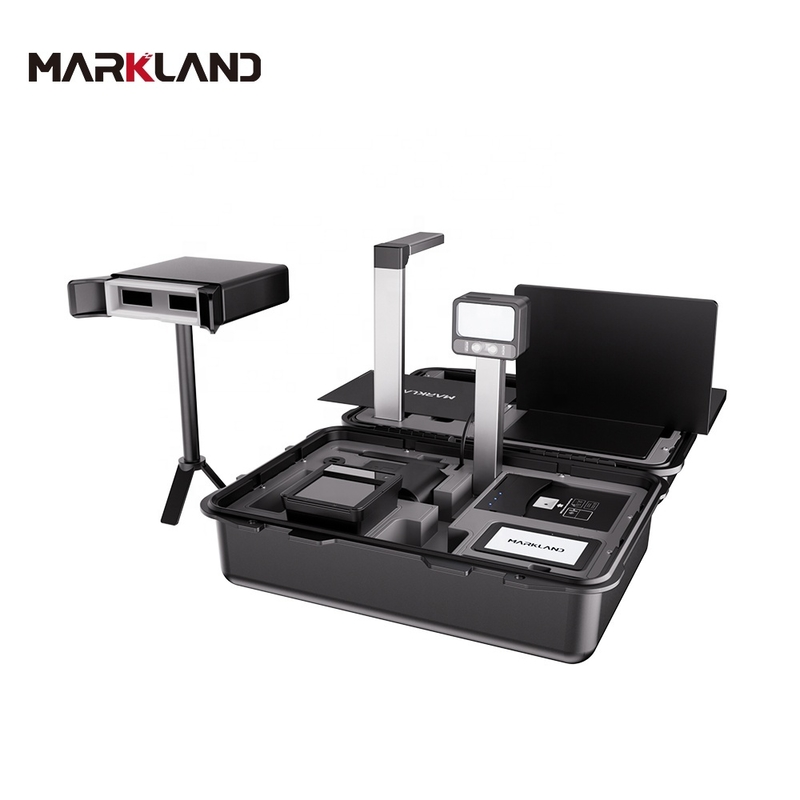

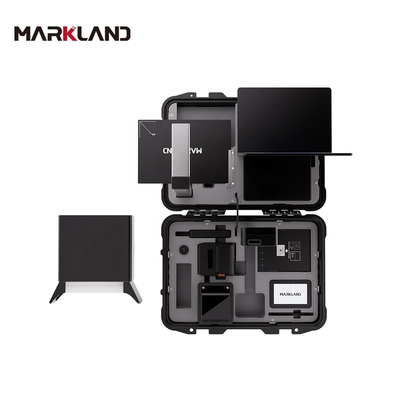

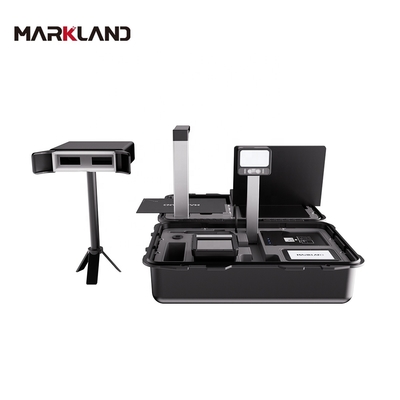

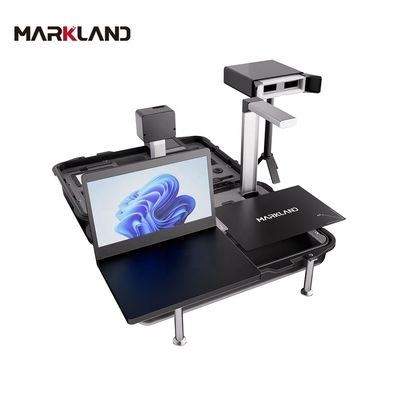

i-Ark M06 Portable Mobile Workstation

Specification

The i-Ark M06 is a mobile workstation that integrates identity information collection and recognition capability. Weighing less than 16.5kg with a compact design and universal wheels, it can be easily hand-carried for boarding, eliminating hassles of baggage check-in. The workstation features a triple- protection casing (Waterproof, Shockproof and Dustproof) and integrated design that significantly reduces transportation costs and risk.

The i-Ark M06 is also a fully functional workstation (not just a storage case!) capable of rapid deployment within 1 minute, allowing seamless transition between operational and mobile states. Its all-in-one solution collects citizens’ biometric and biographical data, functioning even in remote areas without internet or electricity. All components are pre-integrated, with no additional configuration required that greatly improved work efficiency. The swappable battery design extends operational duration.

Personalized component configuration:

• Fingerprint Scanner: IB 4-4-2 Fingerprint Scanner integrating flat ten-finger, flat single-finger, and rolling single-finger capture (FAP 60, FBI Appendix F Certified). • e-Passport Reader: Combines MRZ reading, NFC technology, ISO7816 compliance, and 1D/2D/PDF417 scanning functions. • Printer: Standard 80mm thermal printer. • Handwriting Screen: Adopts passive wireless electromagnetic induction technology to replicates paper-like writing experience. • Document Scanner: Auto-focus, 8MP resolution with real-time preview. • Camera: Binocular lens design captures simultaneous Visible / IR images; features liveness detection, auto-focus, 5MP resolution, wide dynamic range fill light, auto white balance, and color correction. • Iris Scanner: CMITECH BMT-20 binocular iris biometric imager.

Applications:

Voting

National ID card registration/verification, card issuance

Census

Refugee registration

KYC, etc.

PARAMETER			Details
Laptop	Model (optional)	Lenovo ThinkPad S2
		CPU	R5-7530U
		Display size	13.3"
		Display resolution	1920 x 1080
		Storage	512 GB SSD
		RAM	16 GB
4-4-2 Fingerprint Scanner	Brand	IB
		Resolution	500 ppi
		Grayscale	256 grayscale dynamic range
		Image Size	1600 x 1500 pixels
		Supported Image Formats	RAW, JPEG2000, BMP, PNG, WSQ (FBI-approved)
		Certifications	FBI Appendix F, FAP 60, MOSIP
Thermal Printers	Label width	80mm
Thermal Printers		Print density	203dpi
Camera	Sensor	Binocular
		Resolution	5 MP
		Autofocus	Supported
		Output format	JPG/MJPG
Document Scanner	Scan Format	A4
		Resolution	8 MP
		Light source	LED fill light
		Output formats	JPG/MJPG/YUY2
		Minimum illumination	10Lux
		Recommended illuminance	50-80Lux
e-Passport Reader ( MRZ + NFC/RFID + Contact + QR)	MRZ/OCR reading	Supported fonts OCR B
	MRZ/OCR reading			• 3 lines MRZ - ID1: eID, Resident Permit... • 2 lines MRZ - ID3: Passport, Visa... - ID2: ID Card... • 1 line MRZ - ID1: Driving Licence...
		Contact Smart Card reading	ISO/IEC 7816 Part 1 to 4; T=0, T=1
				5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
				Up to 600 kbps (depending on card)
		Contactless/RFID/NFC reading	ISO/IEC 14443, ISO/IEC 18092
				MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family, MIFARE DESFire Family, FeliCa™, NFC Forum Tag Types 1/2/3/4
				106/212/424/848 kbits/s, depending on card IC
		QR Scanner	1D Code: Code 39, Code 32, Code 128, UPC/EAN/JAN, Code 93, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 2 of 5 ...
		QR Scanner		2D Code: QR Code, Data Matrix,Aztec Code, PDF417 ...
Signature pad	Display size	5"
		Display type	TFT LCD
		Screen ratio	16:9
		Valid display area	108 x 64.8mm
		Resolution	800 x 480
		Brightness	300 cd/m2
		Response time	15ms
		Viewing angle	Hor. 140D, Ver. 120D, CR≥10
Power supply	Capacity	20000 mAH (Swappable)
Iris scanner	Aperture capture distance	18.4 to 20 pixels/mm
		Aperture image size	640 x 480 per aperture
		Aperture image standard	ISO/IEC 19794-6
		Light source	Infrared
		Eye care standards	IEC 62471/60825-1
		Certifications	STQC, MOSIP
